200 - 600 T/D Cement Preheater for Cement Plant Dry Process Rotary Kiln
Cement Preheater
The suspension preheater is a heat exchange device in a dry rotary kiln system. The dry raw meal is heat exchanged and separated from the hot gas stream from the rotary kiln under suspension. Make full use of the hot enthalpy (or heat) in the hot gas stream discharged from the rotary kiln and the decomposition furnace to heat the raw material, preheat it and partially decompose the carbonate, and then enter the decomposition furnace or the rotary kiln to continue the heating decomposition. Complete the clinker burning task. Therefore, it must have three functions: the gas and solid phases can be fully dispersed and uniformly distributed, the heat is exchanged rapidly, and the separation is efficiently performed. Only by combining these three functions and trying to make it efficient, can we maximize the heat transfer efficiency (or efficiency) and create conditions for high quality, high efficiency, low consumption and stable production of the whole kiln system.
Parameters
| Product Name: | Cement Preheater | Preheat Capacity: | 200-600t/d |
| Material Classification: | Cement Raw Meal | Application: | Dry Process Rotary Kiln System |
| Structure: | 5-stage Preheater Cyclone Tower | Brand: | AGICO |
Cement Preheater Features:
1. High productivity: the cyclone preheater adopts multistage cycle suspension preheating to improve the production rate.
2. Low investment: due to the reasonable structure of cyclone preheater, reduce the problems of equipment, cost-effective, low investment and higher benefits.
3. Low energy consumption: make full use of heat in the kiln, reduce the energy consumption of clinker production, and reduce the room required.
4. Wide application: custom-design cyclone preheater can be provided according to different regions and production scale, turnkey project of preheater.
Working Principle
The cyclone preheater uses the high-temperature airflow accumulated in the kiln and adopts a multi-stage circulating suspension preheating method to make the raw material powder and the hot air flow fully exchange, complete the suspension preheating and partial raw material decomposition, and prepare for the clinker production.

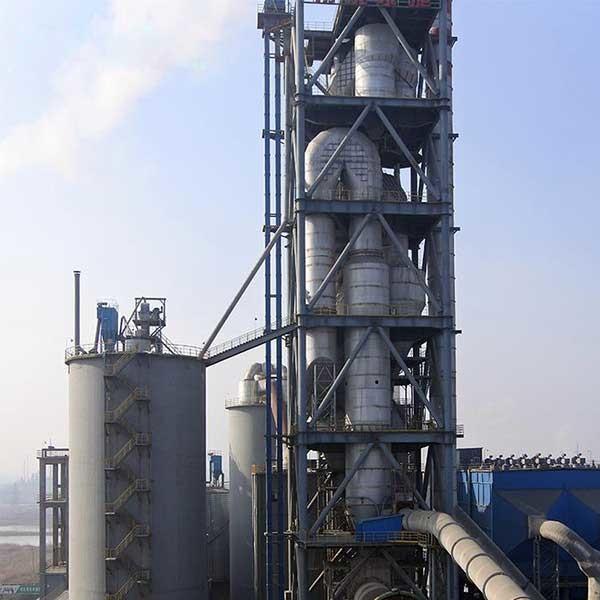

Product Photos
Product Tags:
|
|
Dry Process Rotary Kiln 200T/D 600T/D Cement Preheater For Cement Plant Images
|
